Hilland Fine Hardwood Boxes

Handcrafted Fine Hardwood Boxes

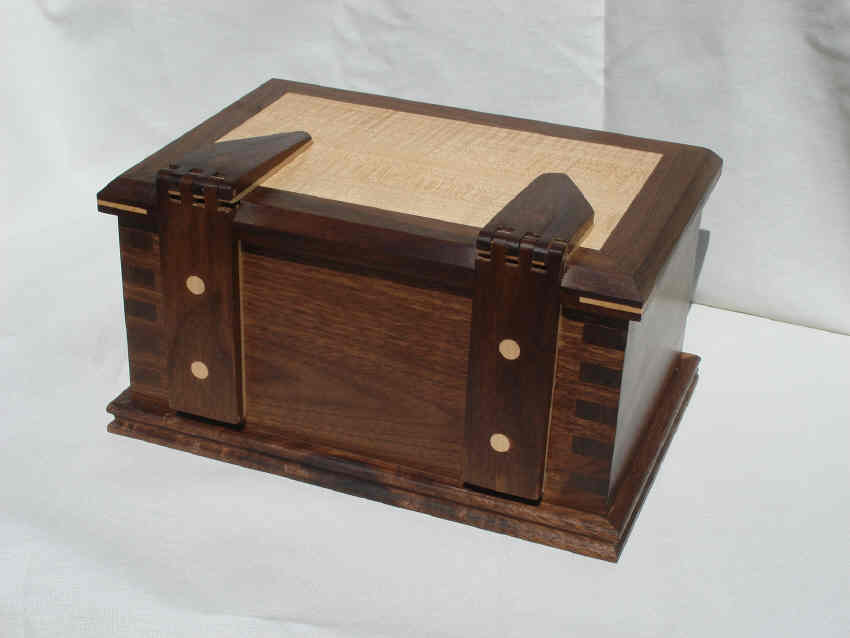

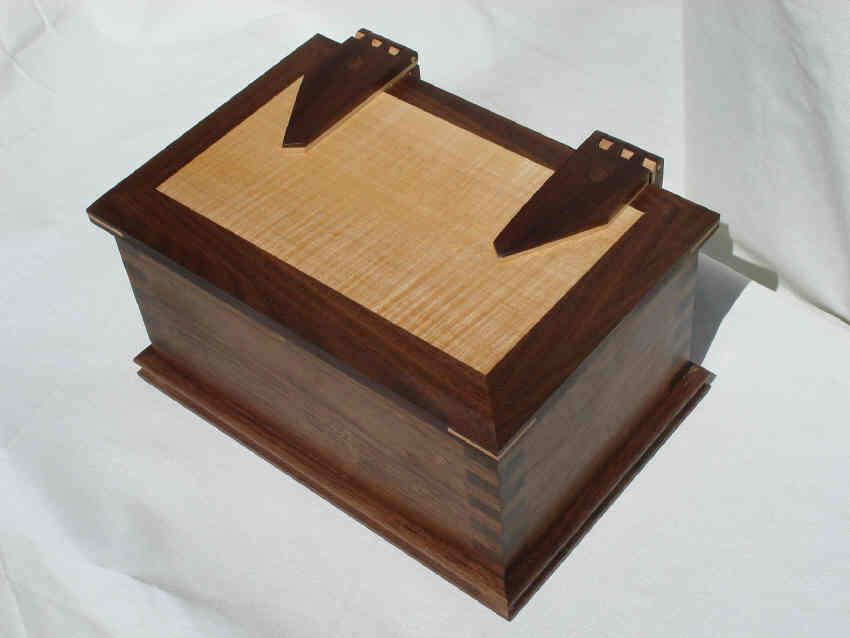

Homemade Hinged Box







Exterior Size: 6"H x 10 5/8"W x 7 1/8"D

Interior Size: 4 1/4"H (with lid closed) x 8 3/8"W x 4 15/16"D
Body: curly maple and walnut
Top: walnut, curly maple and hard maple
Hinges: walnut, hard maple and brass

Comments:

After making the body of solid walnut with 3/8" box joints I created the hinges using 1/4" walnut and 1/8" maple. I used brass pins to hold the handmade hinges together. The top was then created form one solid outstanding specimen of curly maple that also is known as tiger maple or fiddleback maple (used in fine violins).  This is encased in solid walnut with hard maple splines. The base is solid walnut.

The hinges are supported in place using handmade walnut dowels on the top and maple ones on the back. They extend into the body but do not go all the way through.

The inside bottom is lines in high quality black velvet.
